Zeagle F8 Regulator

Price range: $239.95 through $649.95

The legendary Zeagle first stage, complemented with a new high-performing flagship 2nd stage. The result, the best performing diaphragm regulator on the market today.

SKU: Z-3 Categories: ,

Description

In partnership with Atomic Aquatics, Zeagle has engineered over 20 different improvements on everything from inner mechanisms and materials to exterior controls and aesthetics. The Zeagle F8 breathes better, works harder and lasts longer than any other regulator Zeagle has ever made.

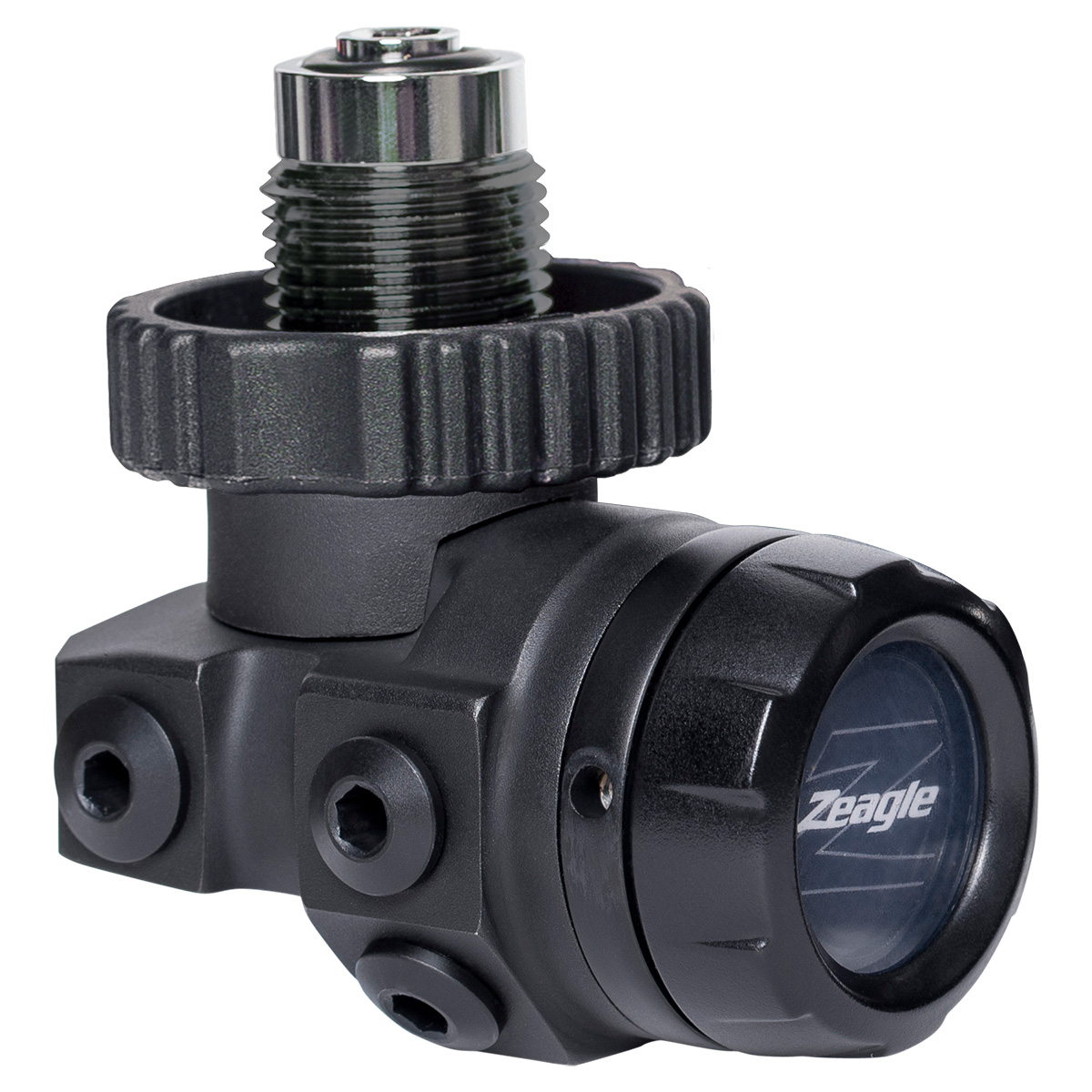

The F8 1st stage has a dry-sealed spring chamber (to stop freezing at water temperatures below 40 degrees F). All delicate parts of the 1st stage including the main spring are sealed behind the clear hydrostatic diaphragm away from the effects of salt or other contaminants in the water, making it environmentally sealed. It is very low in profile, barely extending above the tank valve, and places the low pressure hoses directly out to the sides, in a pattern preferred by many divers.

New Neoflon seat:

Our conical precision high-pressure valve provides much greater reliability and service life compared to conventional designs, while improving responsiveness and performance at all breathing rates

Work of breathing at heavy* demand:

0.72 Joule/Liter

*198 (60M) depth, 750 psi inlet, 62.5 RMV (liters per minute respiratory volume)

Like all Zeagle regulators, The Flathead-7 comes factory ready for use with EAN/ NITROX to 40% O2.

Video

Features

F8 First Stage Features

  • Balanced diaphragm design and the environmentally sealed ambient chamber ensure top performance in any condition.
  • Redesigned environmental seal cap and yoke knob enhance ergonomics & design aesthetics.
  • Precision machined neoflon seat harder more reliable material, keeping you diving longer.
  • First Stage Materials – Body: Brass, O-rings: Nitrile, Seat: Neoflon (PCTFE), HP Valve: Stainless Steel

F8 Second Stage Features

  • New inhalation diaphragm provides superior tear strength and improved response time to breathing (super soft silicone molded over a low friction disk).
  • Improved exhaust valve ensures dryness and a lower exhalation effort.
  • Seat-saving orifice, compliments of Atomic Aquatics, retracts when not in use – extending the life of the breathing tube seat. (#5,803,073)
  • Seat comprised of soft silicone molded over a metal insert to deliver the firmness required for an airtight seal while maintaining the necessary elasticity to prevent leaking.
  • Redesigned front cover and inhalation effort control knob use co-molded components that provide the necessary grip, soft touch and ease of use. Available in several color kits
  • Zirconium-plated inlet tube and heat sink for superior corrosion resistance.
  • Redesigned heat sink dramatically increases surface area, aiding in the heat exchange necessary to avoid freeze-up.
  • Co-molded silicone mouthpiece for better fit and less jaw fatigue
  • Second Stage Materials – Cover: TPU, Case: Nylon 12, Poppet Seat: 316 SS insert with silicone overmold, O-rings: Nitrile, Diaphragm: Elastomeric Polymer, Exhaust Valve: Silicone

Product Attributes

Shipping Weight 3.4 Lbs.
Shipping Dimensions 12 × 9 × 5 in
Product Type

First Stage + Second Stage, First Stage Only, Second Stage Only

Regulator Type

DIN Sealed, Yoke Sealed
