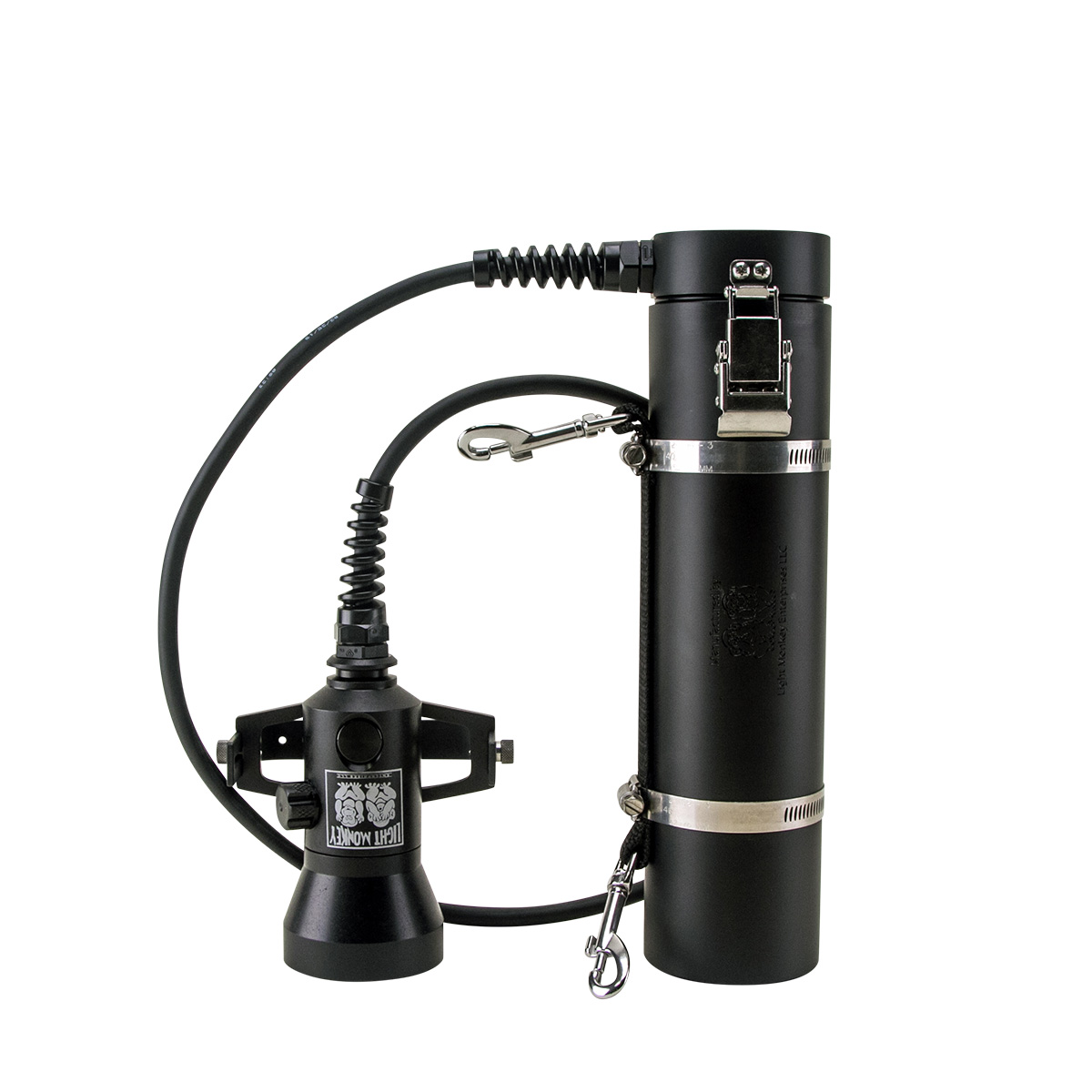

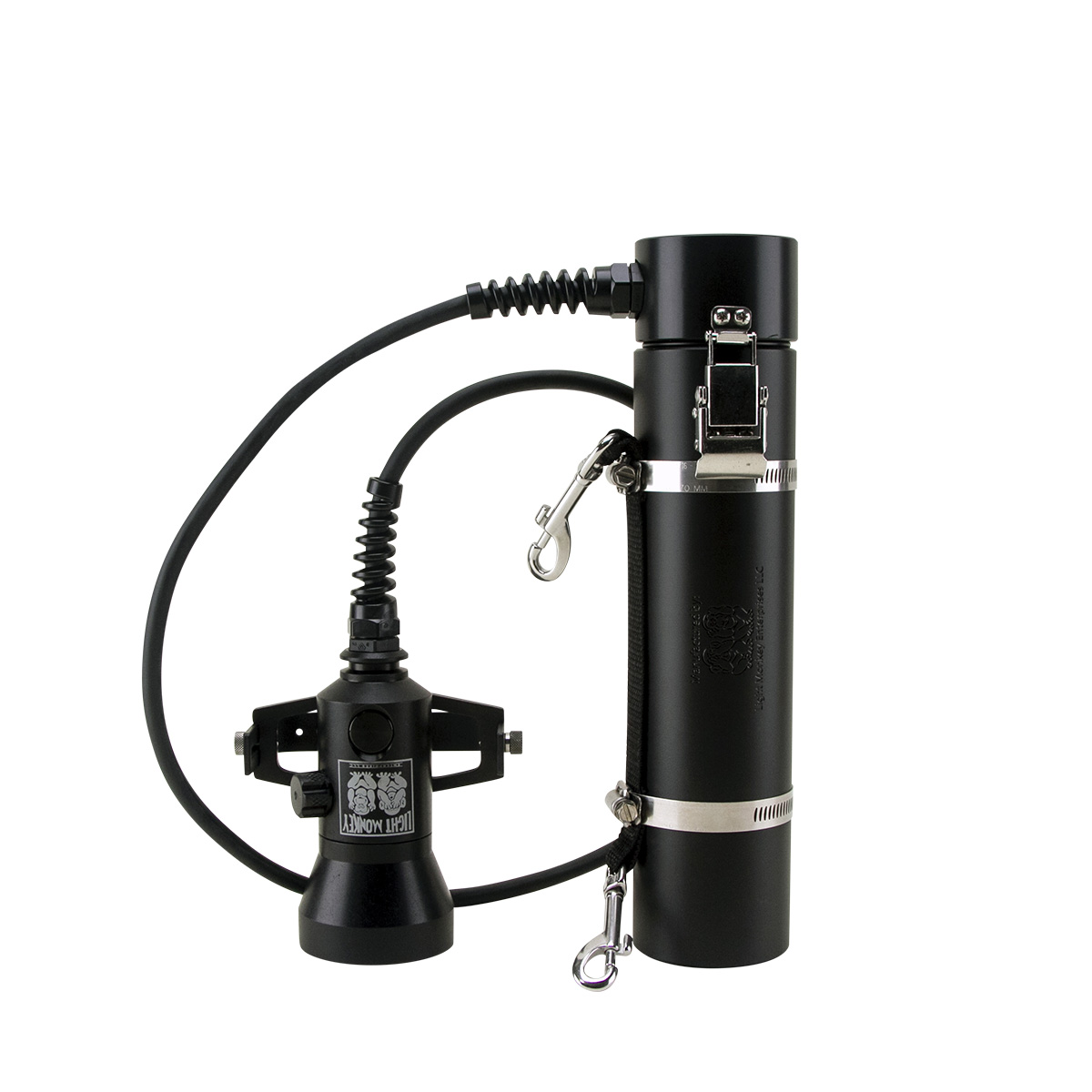

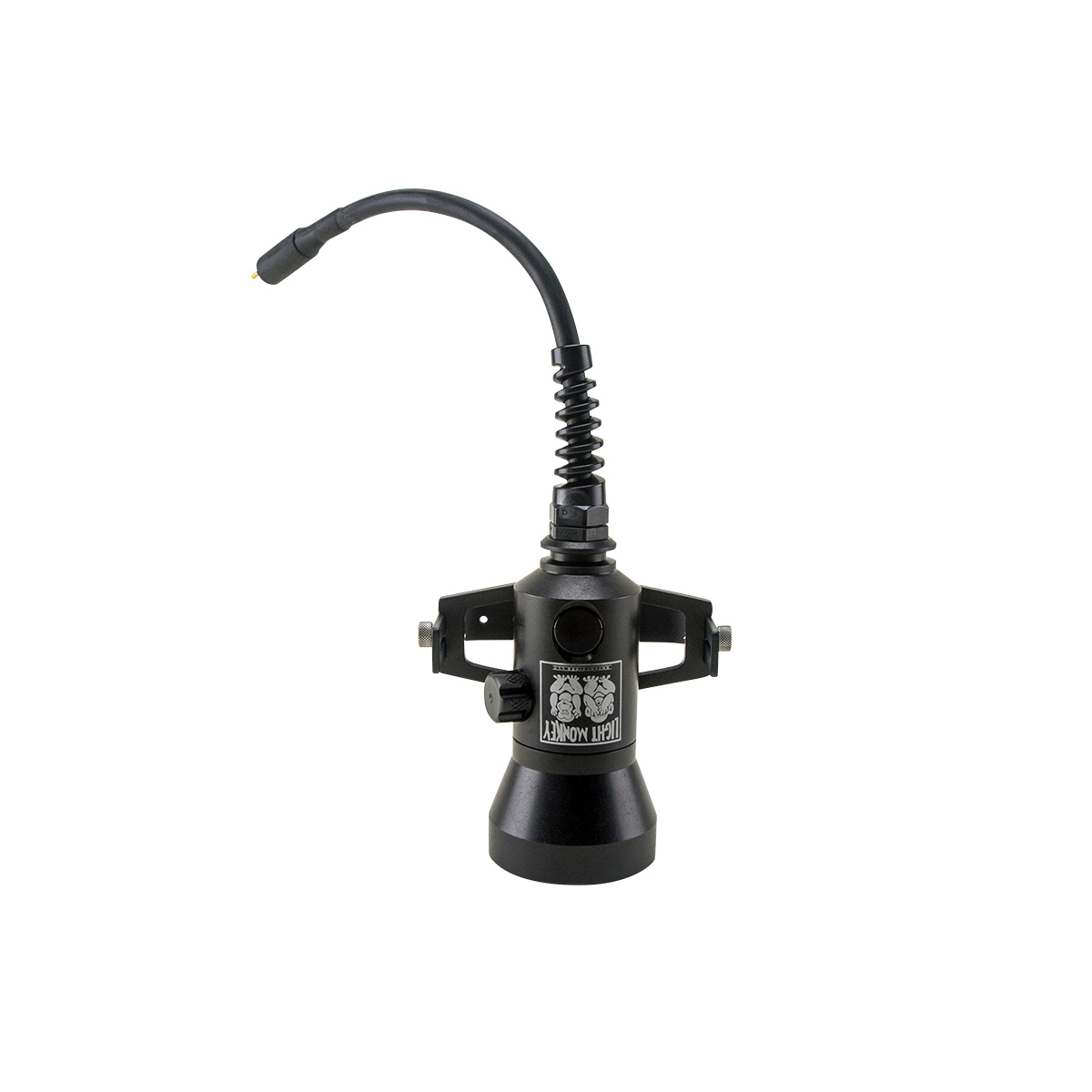

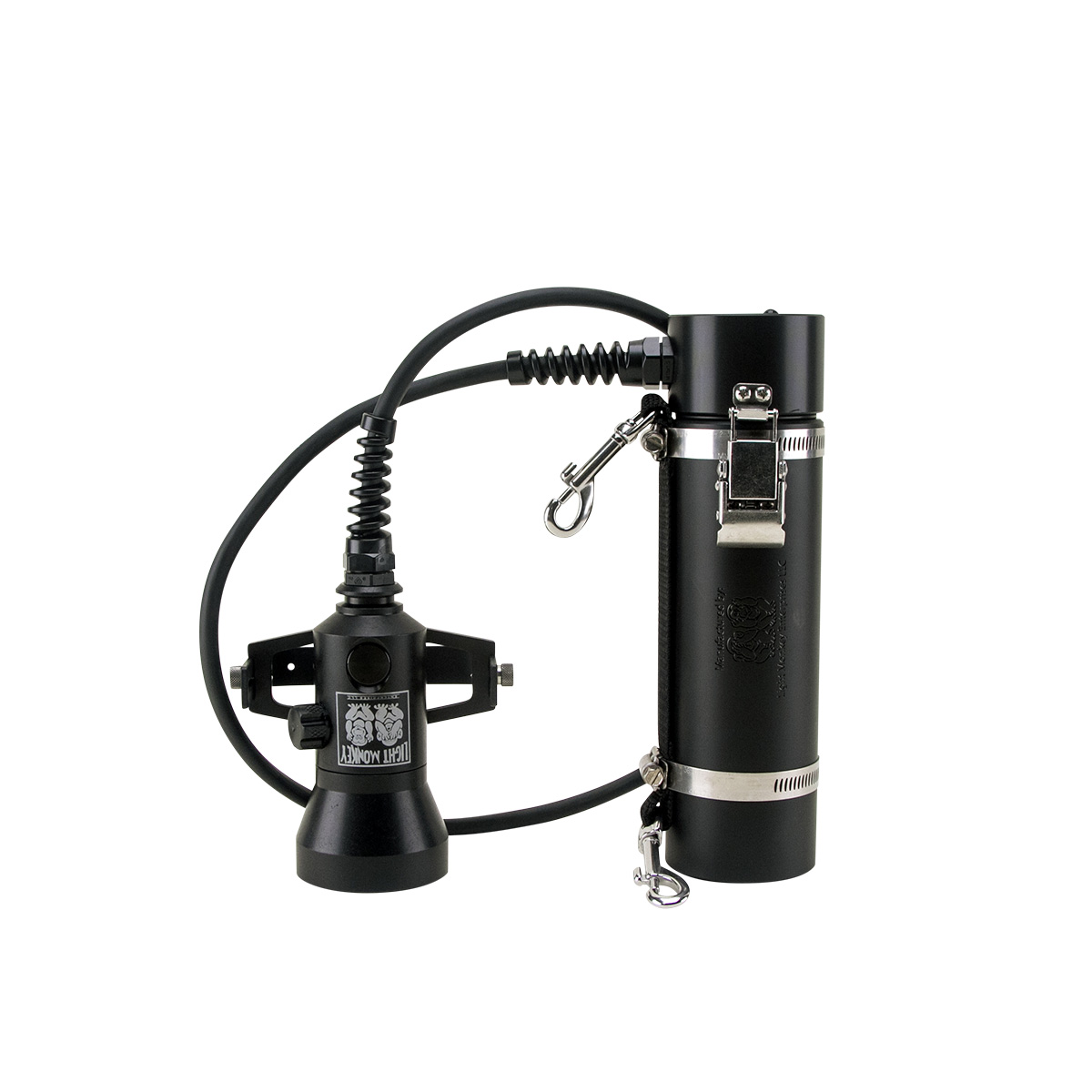

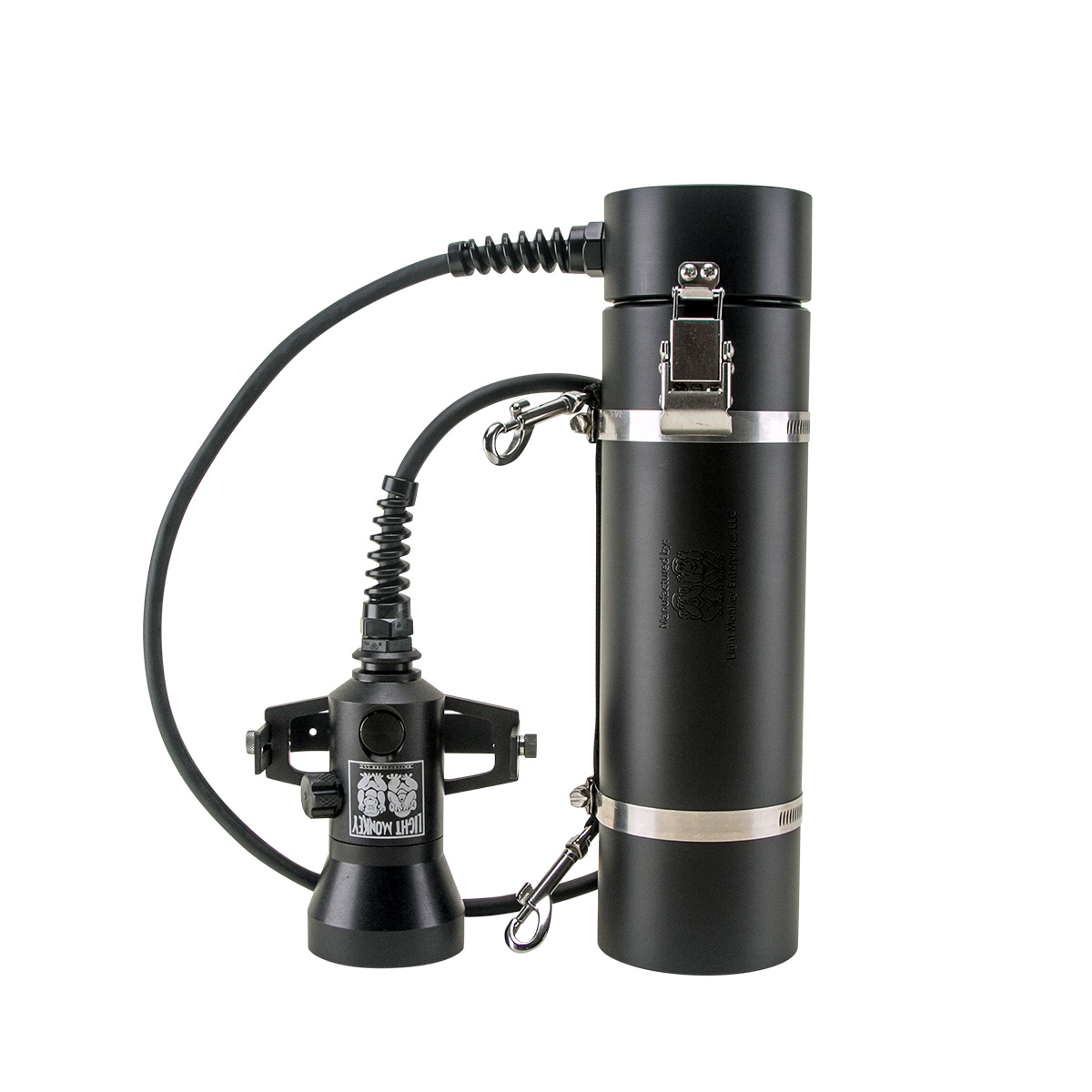

Light Monkey 32 Watt Variable Focus LED Sidemount
Light Monkey 32 Watt Variable Focus LED Sidemount - Image 2
Light Monkey 32 Watt Variable Focus LED Sidemount - Image 3
Light Monkey 32 Watt Variable Focus LED Sidemount - Image 4
Light Monkey 32 Watt Variable Focus LED Sidemount - Image 5
Light Monkey 32 Watt Variable Focus LED Sidemount - Image 6

Light Monkey 32 Watt Variable Focus LED Sidemount

Price range: $1,580.00 through $2,350.00

Focusable LED with five Piezo controlled levels of output and 4 battery pack options (see spec tab below for full details). 52″ (130 cm) cord with a 90° angle wire connection from lid to light head allows for sidemount routing.

  • 10 AMP
  • 15 AMP
  • 20 AMP
  • 30 AMP

Optional Add-On

Product price: $1,580.00
Total options:
Order total:
SKU: N/A Categories: ,

Description

52″ (130 cm) cord with a 90° angle wire connection from lid to light head allows for sidemount routing.

Light Monkey LED lights are available in 3 different levels of light output: 12 Watt, 20 Watt, and 32 Watt. Each uses a combination of different emitters with specifically designed optics to provide a tight beam for cutting through low-visibility water and promoting effective signaling.

Light Monkey has spent ten years developing our LED technology, finding the right combination of LED emitter and reflector to keep a tight beam. Light Monkey’s 12 Watt LED utilizes an Osram emitter. In their 20 Watt and 32 Watt LEDs, they are using a Cree emitter with our own custom reflector. The result is a laser-tight center spot for signaling and the perfect amount of spill around the side to give more peripheral light.

  • 6500 Kelvin Color



  • Level 5 – 8600 Lumen
  • Level 4 – 4730 Lumen
  • Level 3 – 2795 Lumen
  • Level 2 – 1000 Lumen
  • Level 1 –   250 Lumen



Specs

  10 AMP 15 AMP 20 AMP 30 AMP
Runtime (Level 5 – 8600 lumens) 200 min 300 min 400 min 600 min
Runtime (Level 1 – 250 lumens) 53 hours 80 hours 106 hours 160 hours
Length (canister) 9″ (22.7 cm)  11″ (28 cm)  12″ (30.5 cm)  12.5” (31.75 cm)
Diameter (canister) 2.75″ (7 cm)  2.75″ (7 cm) 3″ (7.62 cm) 3.5” (8.89 cm)
Dry Weight 4.5 lbs (2 kg) 5.25 lbs (2.4 kg) 6.3 lbs (2.8 kg) 6.9 lbs (3.13 kg)
Negative in Water 1 lbs (.45 kg)  1.75 lbs (.8 kg) 1.25 lbs (.6 kg) 1.25 lbs (.6 kg)
Recharge time from complete discharge 6 hours 9 hours 12 hours 18 hours

Product Attributes

Shipping Weight Lbs.
Shipping Dimensions N/A
Battery Pack Size

10 AMP, 15 AMP, 20 AMP, 30 AMP
Wiring Option

Standard Hardwire, E/O Cords (+$150)
