DIVESOFT ANALYZER SOLO O2

What's Included

Analyzer SOLO O2 comes with following:

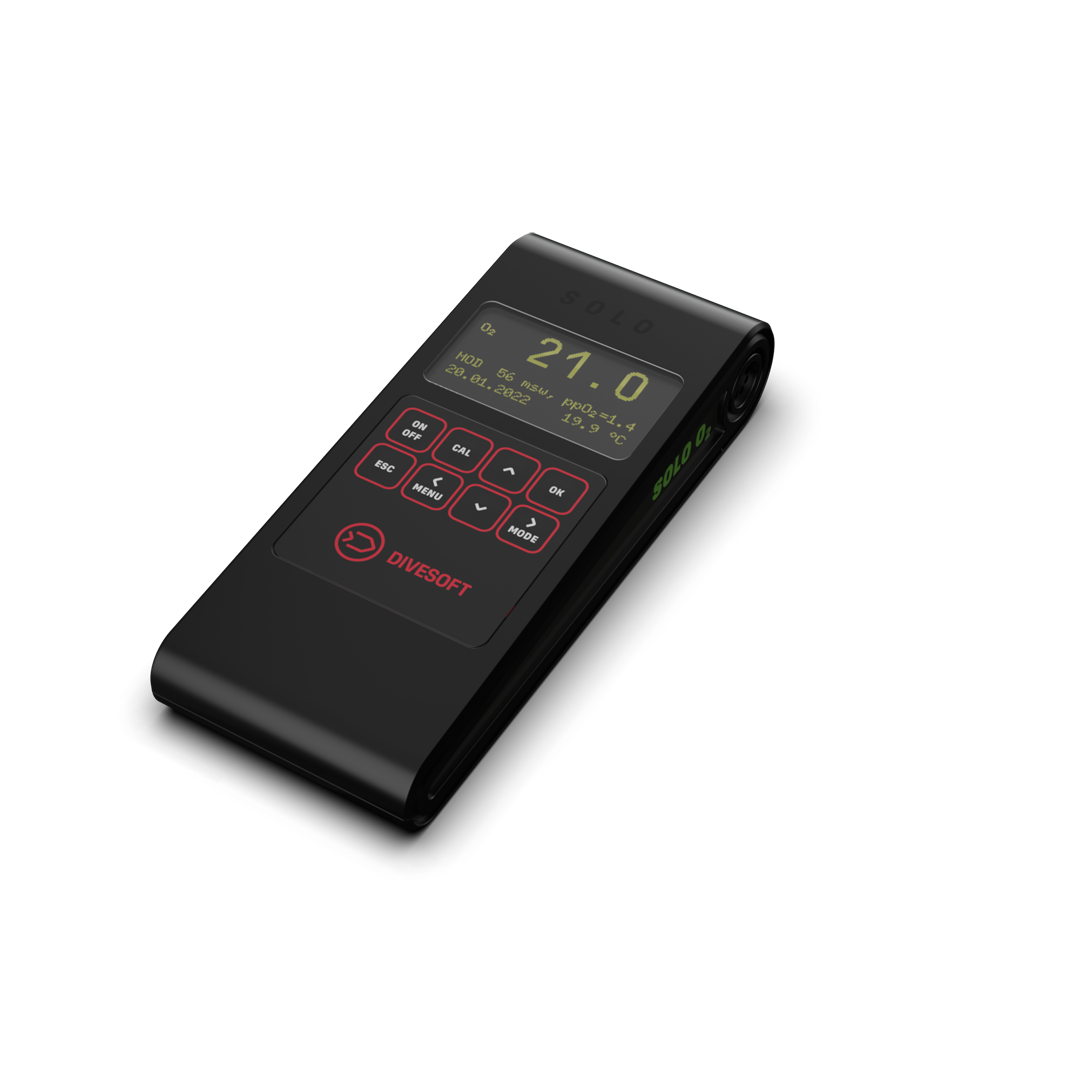

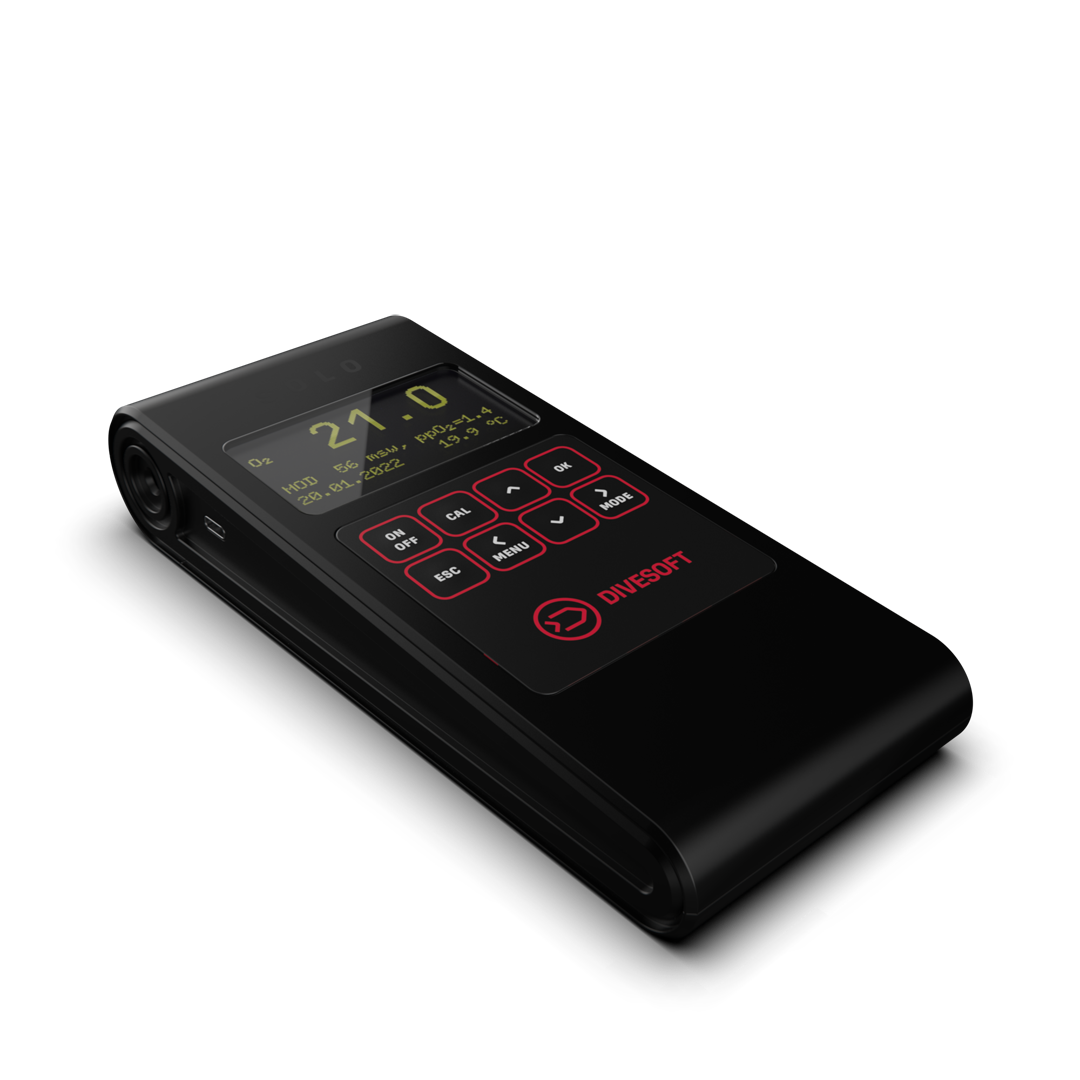

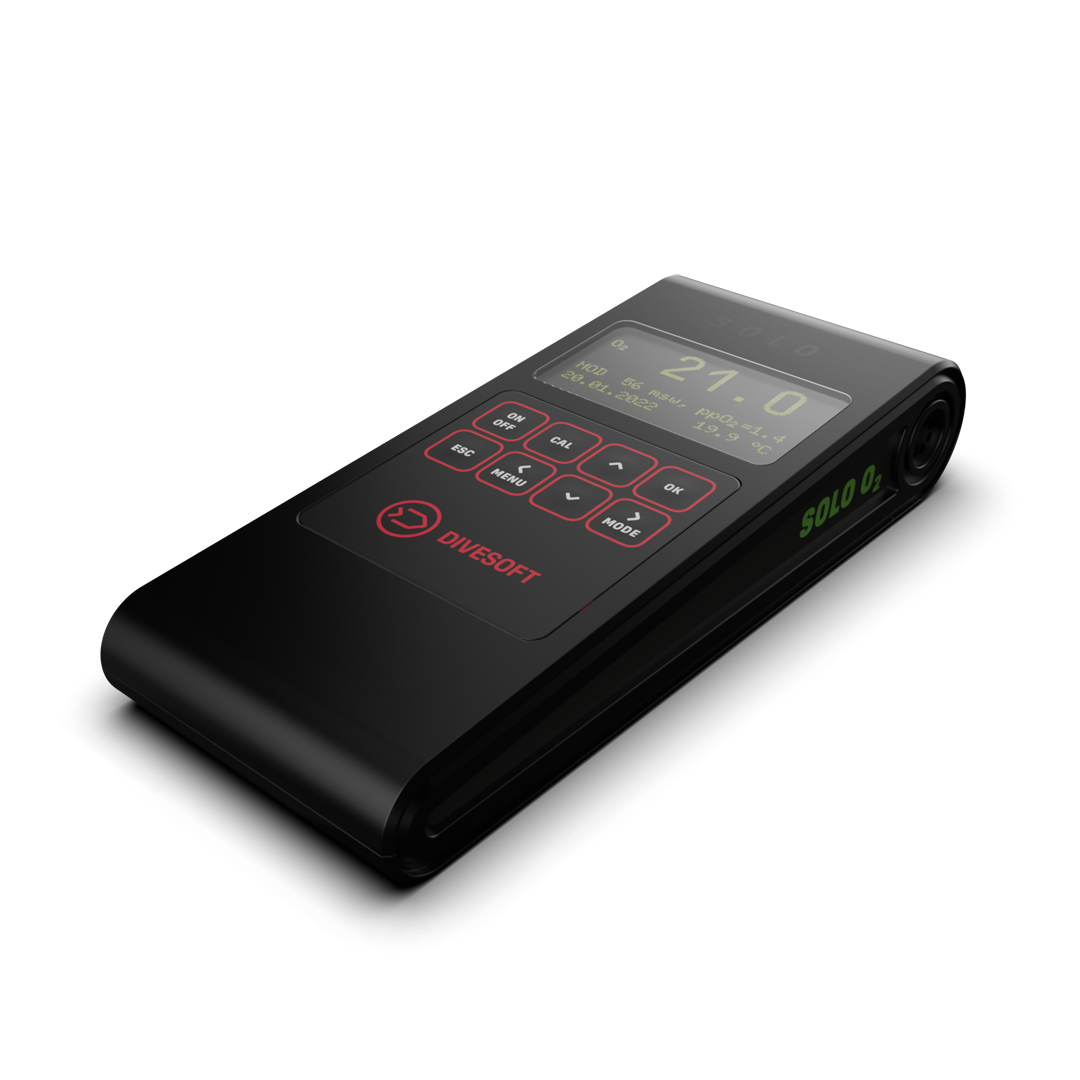

#8302 Analyzer SOLO O2

#3001 Oxygen Sensor Divesoft 22S

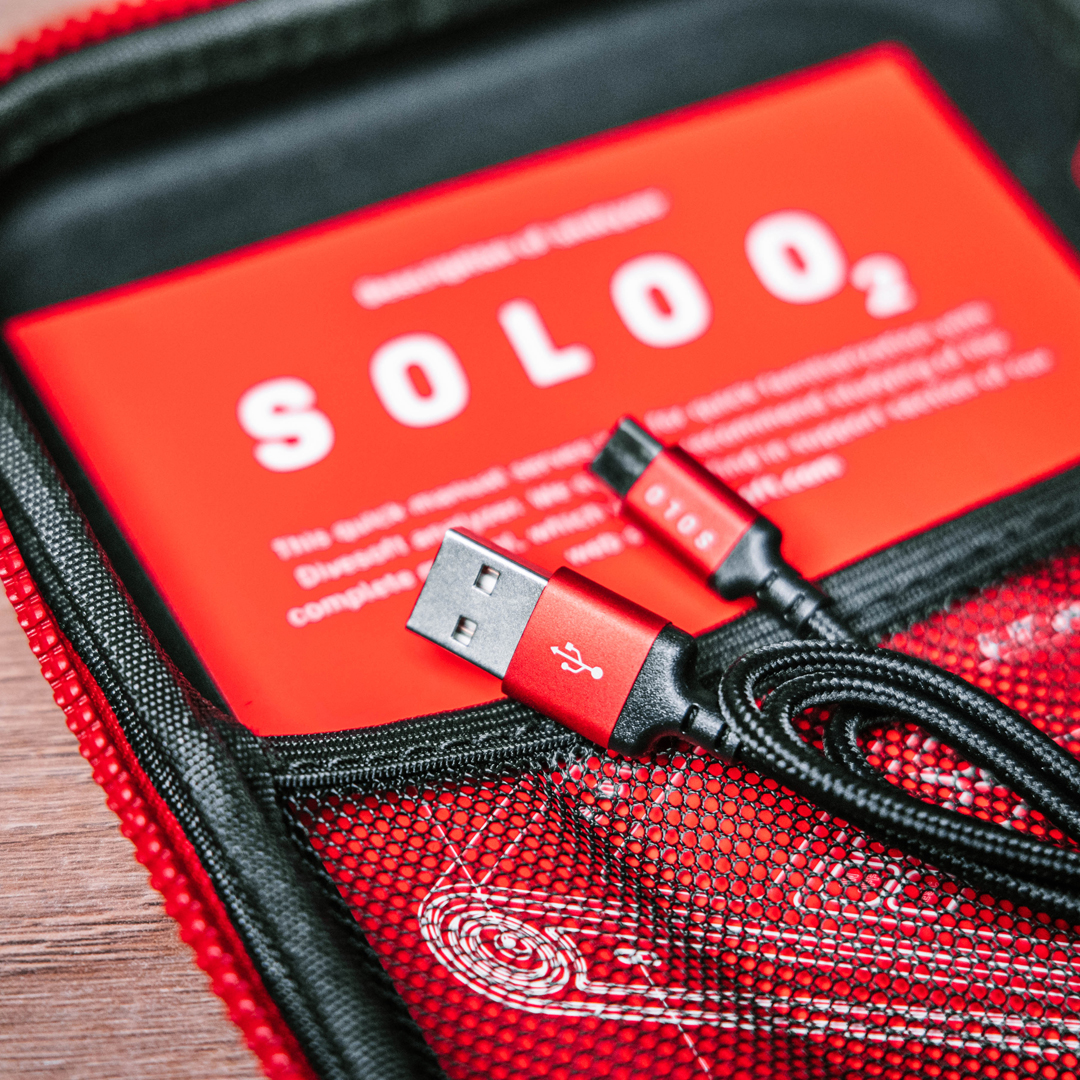

#3362 USB-C cable

#8438 Basic flow limiter

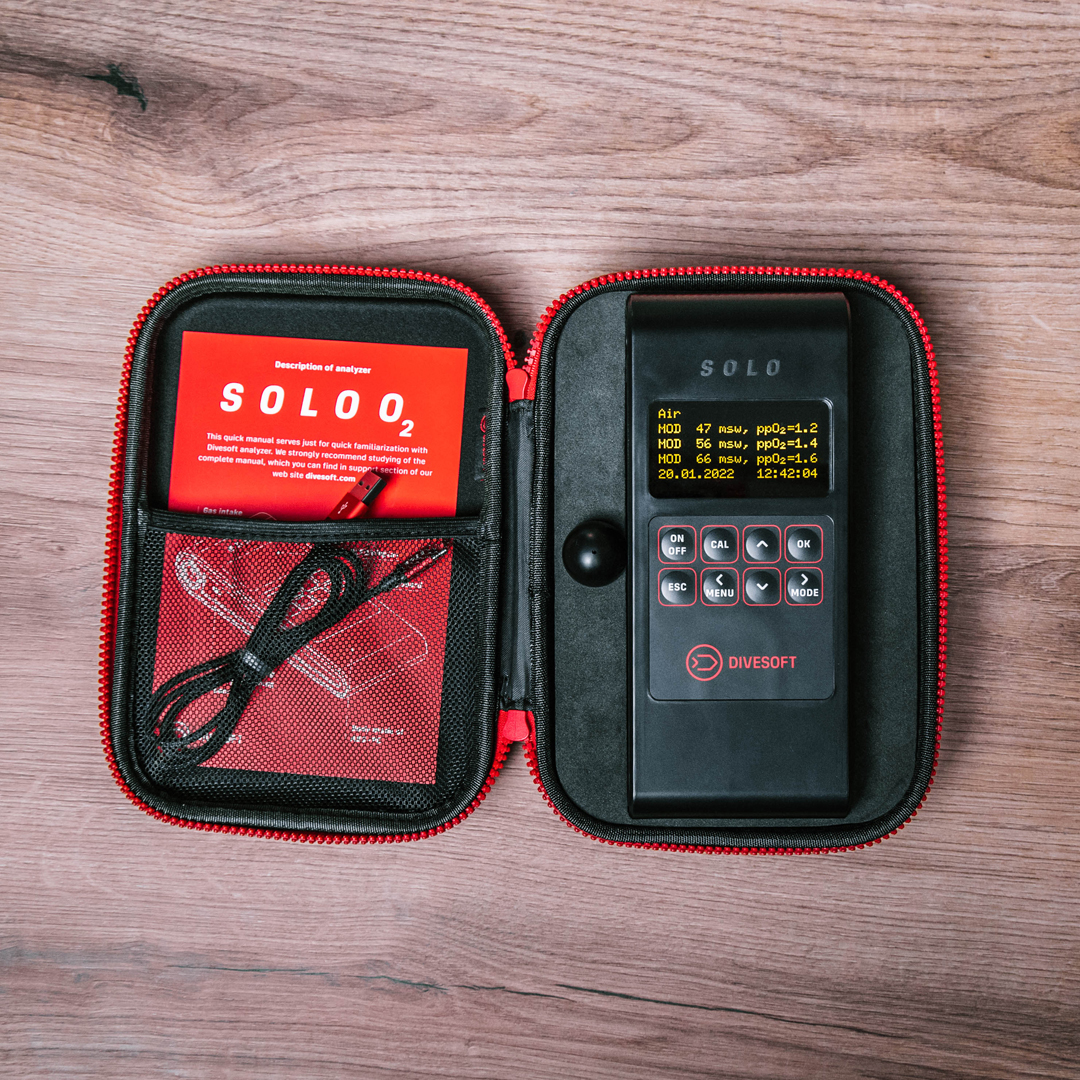

#3367 Semi-hard zipper case for Analyzer SOLO

Specs

Dimensions: 85 × 205 × 40 mm (31/4 × 77/8 × 11/2 inches)

Weight: 332 g (without packaging and accessories)

Oxygen concentration measurement range: 0 to 100%

Operating pressure: 700–1100 millibars (20– 32 inches Hg), which corresponds to a standard atmosphere at 0 to 3000 m (0–10000 ft)

Mixture Pressure: Corresponds to an ambient pressure in the range of 700–1100 millibars (20– 32 inches Hg), which corresponds to a standard atmosphere at 0 to 3000 m (0–10000 ft)

Nominal gas flow rate: 0.2 l / min

Measuring cycle: 200ms

The connection dimensions of the sampler: Standard for a DIN valve (EN 144-2) for 200/300 bars (G 5/8 thread). Samplers with a connection to any standardized or common valves are available on request or as optional equipment

Oxygen sensor: Divesoft R22 S (Molex connector)

Easy to replace O2 sensor

Oxygen sensor life expectancy: 2 years

Replaceable battery: Through authorized service center

Battery: 210 measurements or 7 hours of continuous operation

Warranty: 24 months, 12 months on battery and oxygen sensor

Charging and programming: USB-C

Charging time: 3–4 h

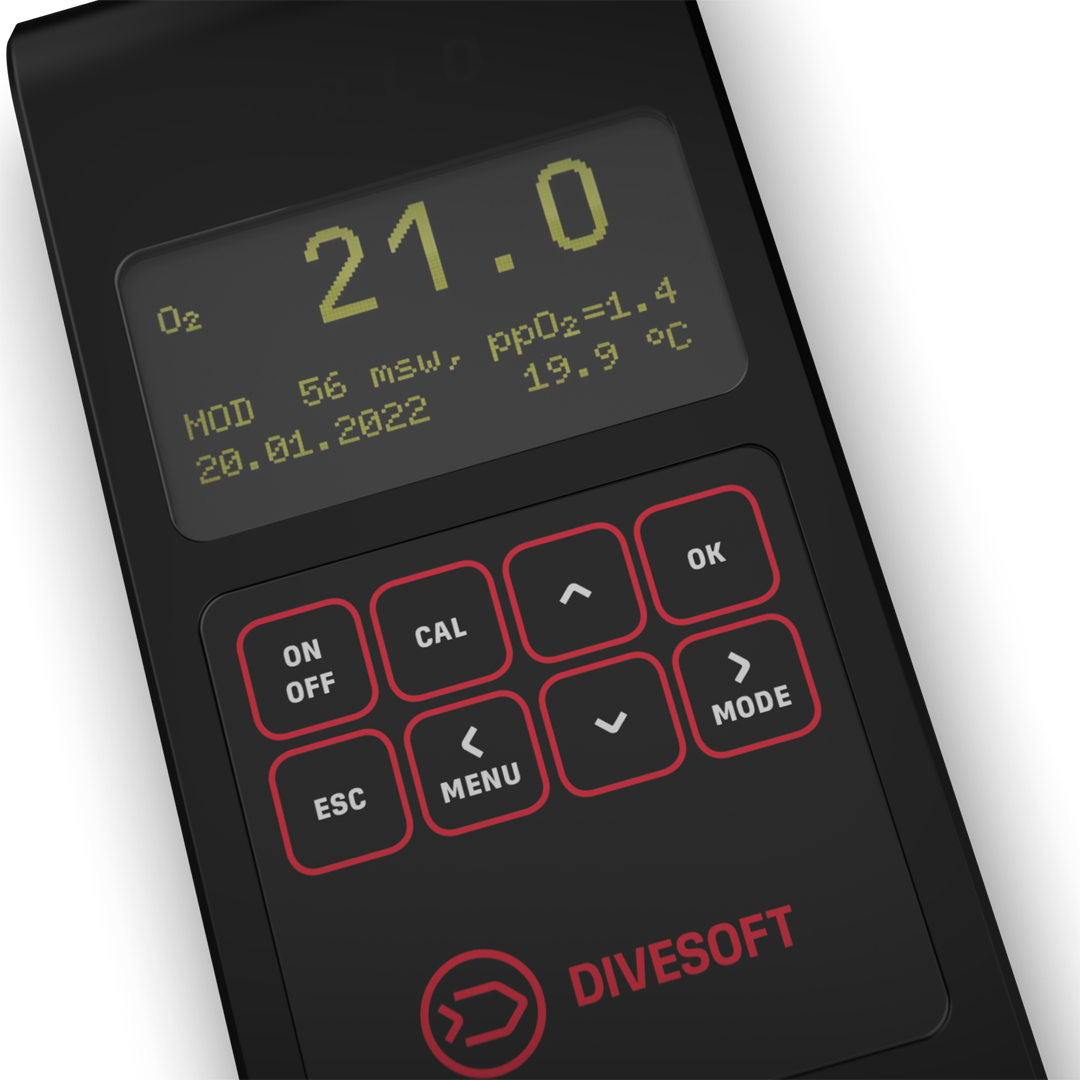

Display: OLED

Body: ABS-PC
