Apeks XTX50 Regulator

$649.00

The XTX50 is for the discriminating diver who wants the benefits of a feature-rich regulator at a moderate price.

This product qualifies for Free Parts for Life.

SKU: RG11512 Categories: ,

Description

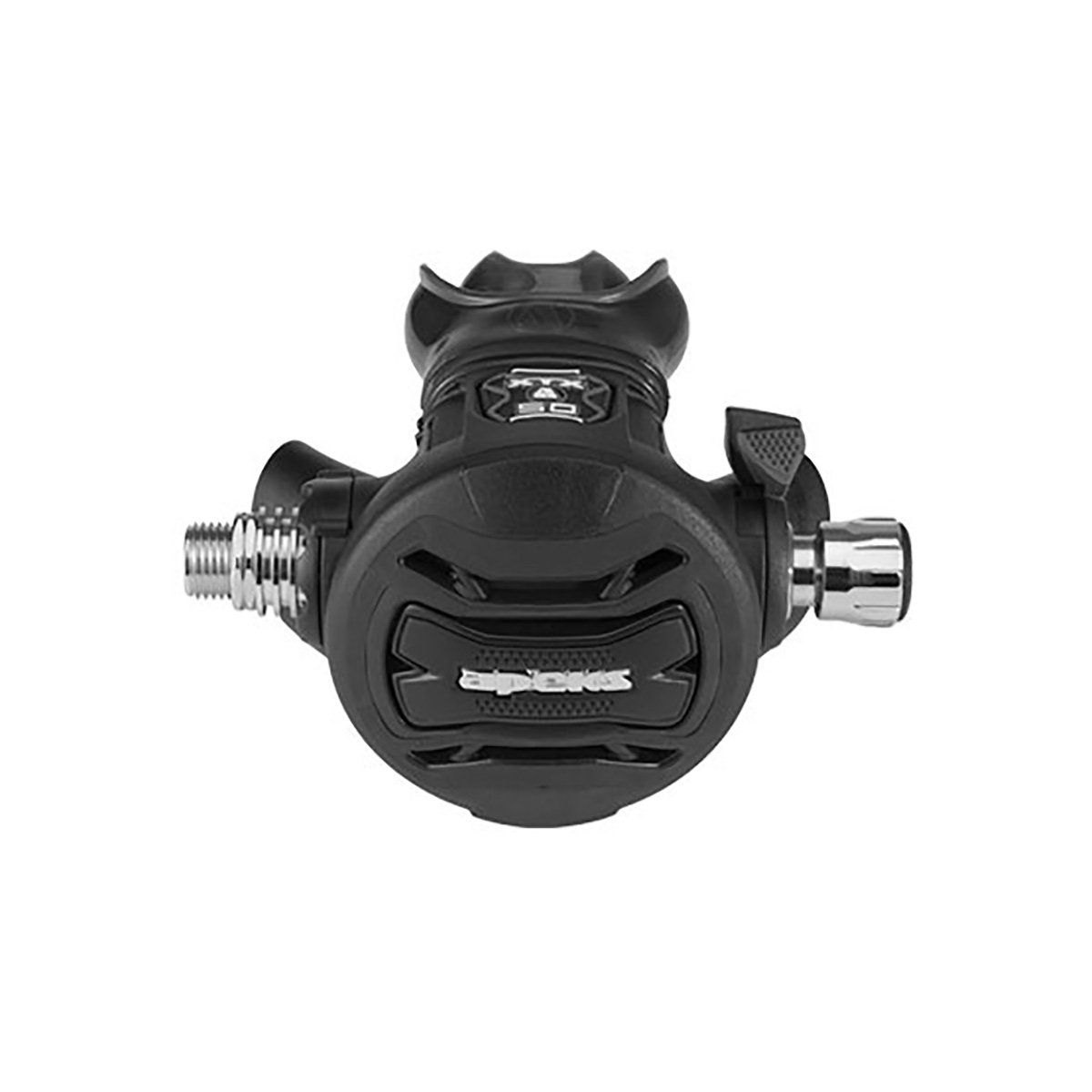

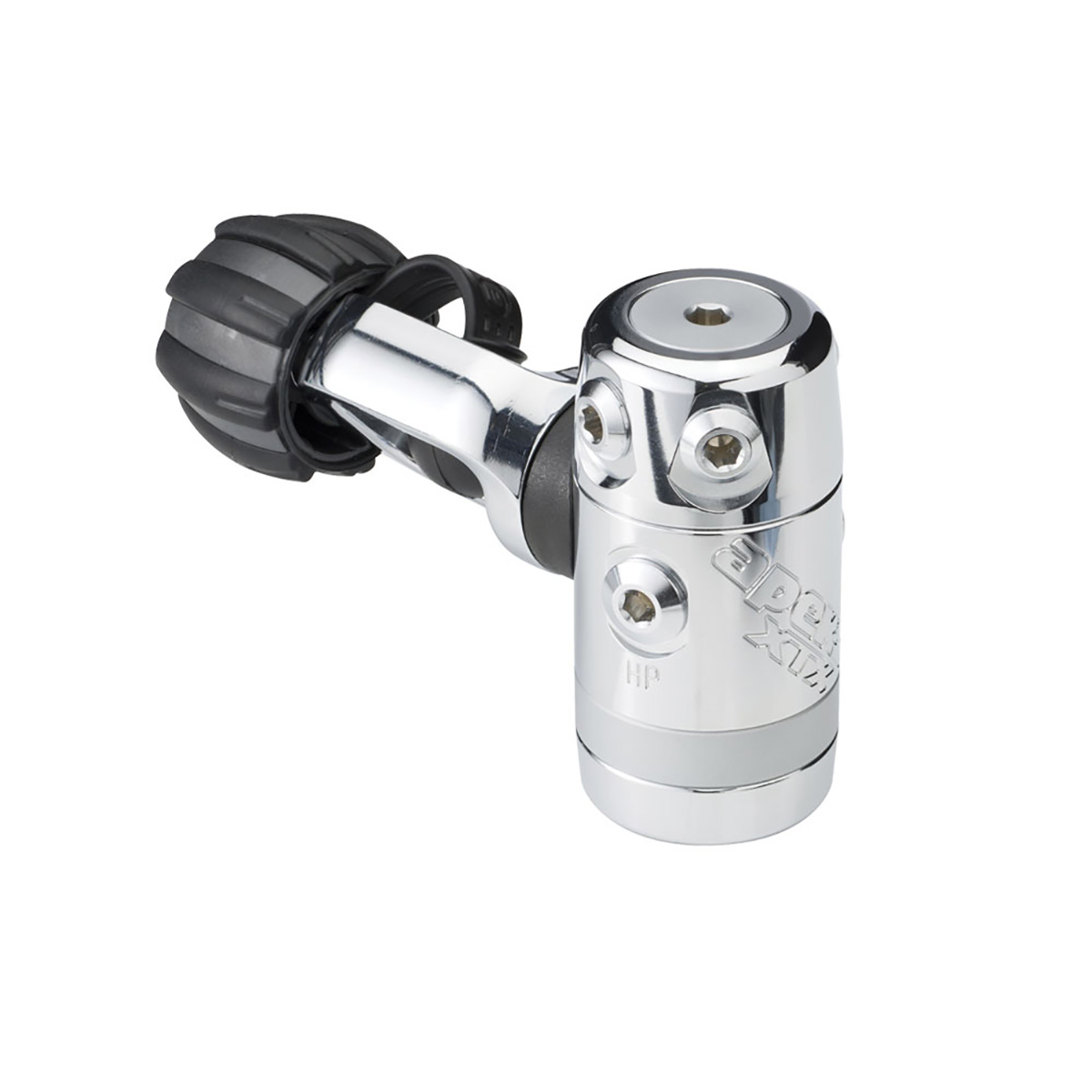

XTX50/DST Regulator

The XTX50 is for the discriminating diver who wants the benefits of a feature-rich regulator at a moderate price. This popular regulator has four medium-pressure ports all mounted on a rotating turret. This results in optimal hose routing while eliminating sharp bends in the hose.

Features an innovative Diver Changeable Exhaust system (DCE). This system gives the diver the ability to change from a small exhaust tee to a large exhaust tee. This gives the user a choice, wider exhaust tee for minimal bubble interference (essential for underwater photography) and narrow exhaust tee for a smaller compact comfortable regulator. The regulator will be supplied with both sets of exhaust tees

Optional 5th port is available for sidemount or twin cylinder setups.

It can be converted from a right-handed hose configuration to a left-handed one. The process of changing the regulator to a left-handed configuration is both quick and simple. However, this procedure MUST only be performed by an APEKS Authorized Service Technician

Available in yoke or din configuration

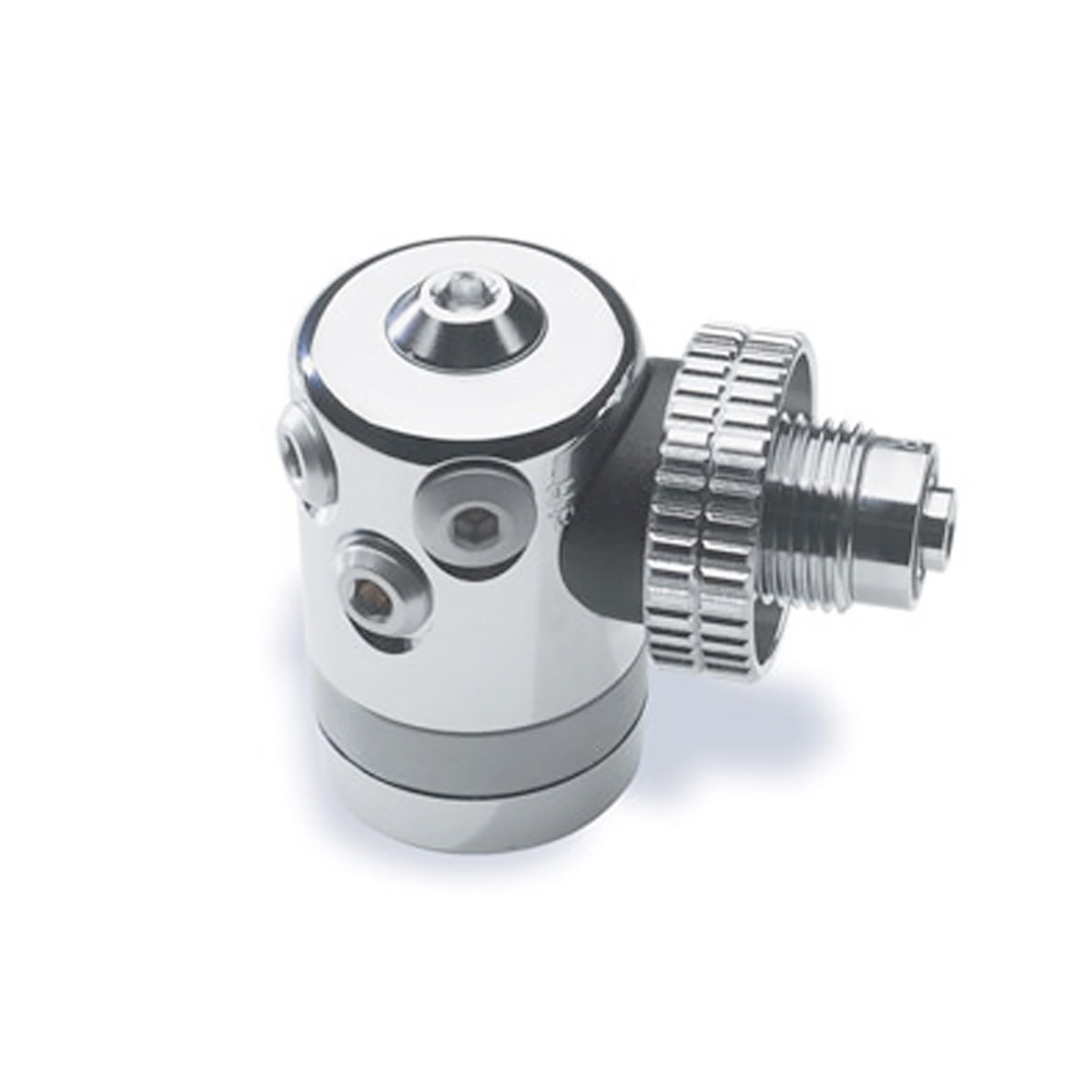

XTX50/DS4 Regulator

The XTX50/DS4 is the same as the XTX50 in terms of performance but uses a different first stage. The DS4 first stage lacks the rotating turret found on the XTX50 first stage and offers one HP port. This compact first stage is a time-proven workhorse that has been embraced by the technical community around the world.

Specs

DST 1st Stage DS4 1st stage
Connections Yoke and DIN available DIN Only
Type of first stage Over-balanced diaphragm design, environmentally sealed Over-balanced diaphragm design, environmentally sealed
Body Type MP ports mounted on swivel turret Cylindrical
Number of HP ports 2 (7/16″ UNF) 1 (7/16″ UNF)
Number of MP ports 4 with 5th port option (3/8″ UNF) 4 (3/8″ UNF)
Environmental Dry Kit Standard Standard
First stage exterior Chrome over marine brass Chrome over marine brass
Orientation Convertible LH or RH Convertible LH or RH
Coldwater Use Yes Yes
Type of second stage Pneumatically balanced Pneumatically balanced
Opening Effort Control Knob Yes Yes
Integrated Venturi Lever Yes Yes
Mouthpiece Comfo-bite™ Comfo-bite™
Exhaust tee Diver Changeable – comes with 2 sets Diver Changeable – comes with 2 sets
Heat Exchanger for freezing resistance Yes Yes
Hose type Braided Flexi-hose Braided Flexi-hose
Overall work of breathing (WOB) scores Avg. 0.70 joules/liter Avg. 0.70 joules/liter
Nitrox compatible Yes to 40% O2 when new, out of the box / Can be cleaned to 100% Yes to 40% O2 when new, out of the box / Can be cleaned to 100%
Weight Yoke 1269g / DIN 1139g

Product Attributes

Shipping Weight 3 Lbs.
Shipping Dimensions 14 × 8 × 6 in
Connection Type

DIN, Yoke

1st Stage Model

DST, DS4
